4. December 2007 - track laying commences.

Post by Kevin Wilson-Smith »

Track work commences!

Basically, and quite simply, cork is laid as the base for the track. The track itself is flex-track (it is easily bent to form curves) and comes in metre lengths.

The cork itself is laid loose - strips are used for single tracks and sheets for the yard area (see photo bottom right).

Left loose, the cork can be adjusted and the lines are laid.

The track lengths are then pinned loosely in position, with rail joiners being used to connect separate tracks.

The flextrack is trimmed to fit as it is curved, or where points (turnouts) are added or gaps filled.

Once everything is fine - a "good eye" plays an important part here - then the pins are hammered in.
Attachments

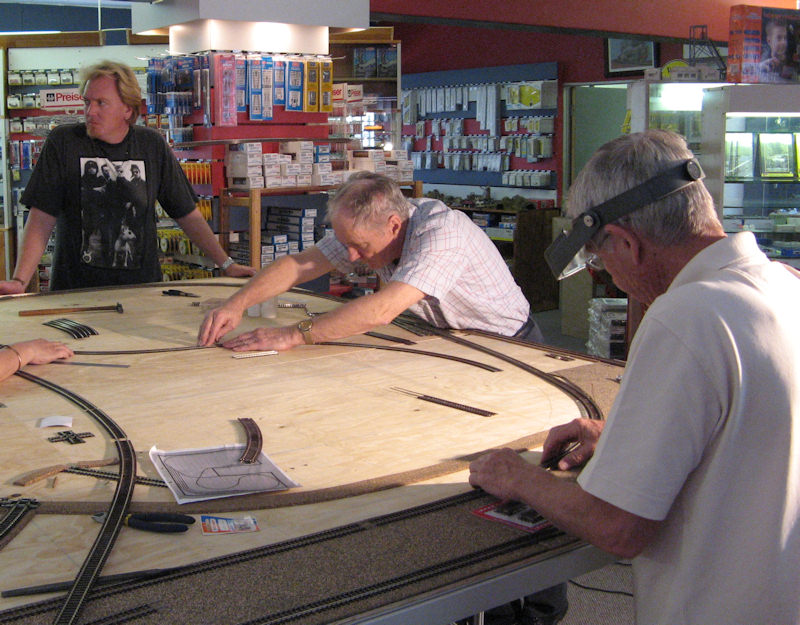

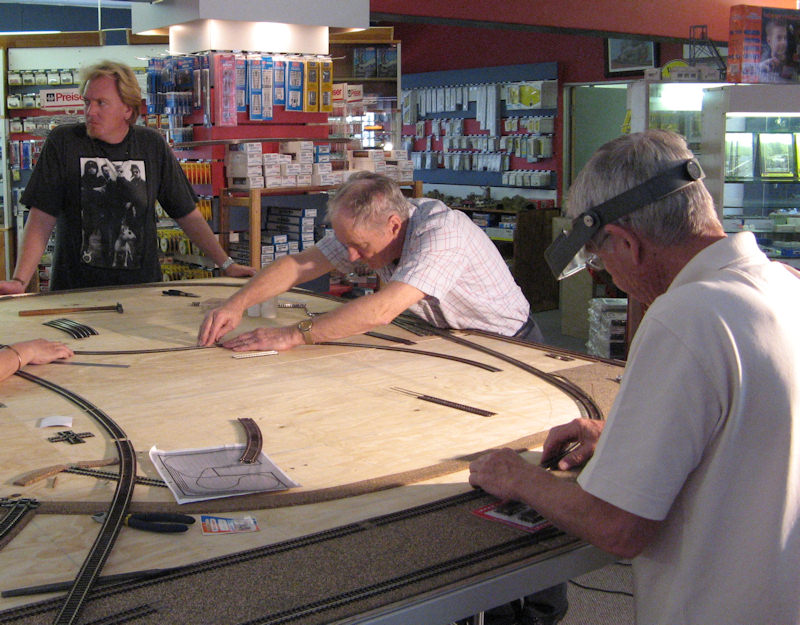

Men at work - it is unclear from the photo what actually Jorg is doing (left), but Paul (centre) is working. Eric (right) looks also like maybe he is working too.
Men at work - it is unclear from the photo what actually Jorg is doing (left), but Paul (centre) is working. Eric (right) looks also like maybe he is working too.

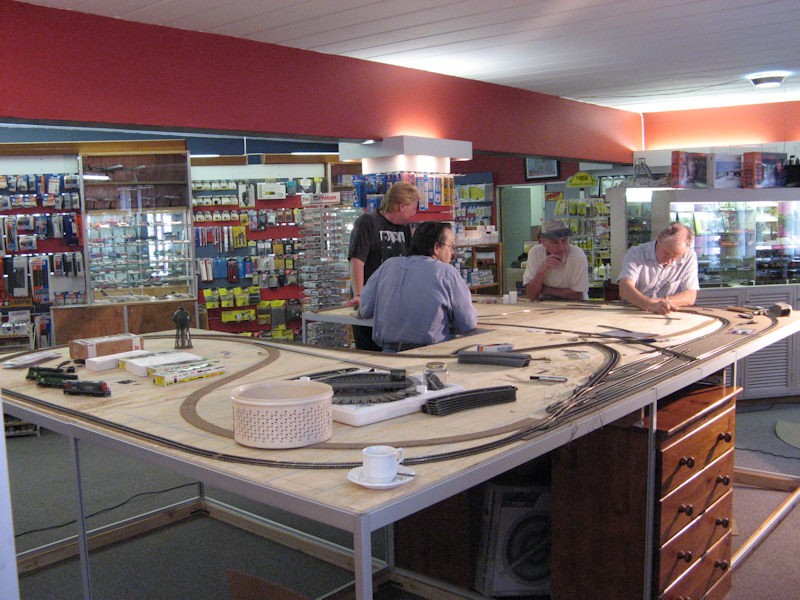

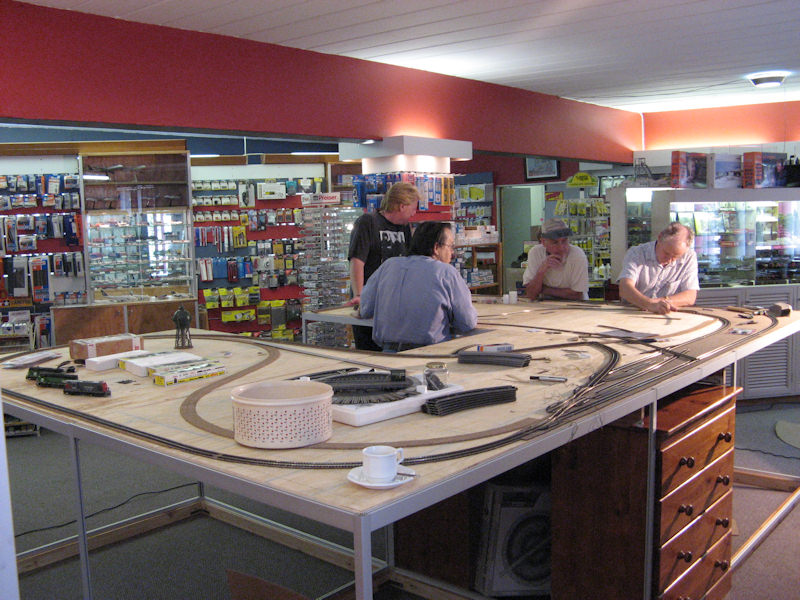

A general view as work progresses. The biscuit tin serves both as a building aid and to keep the crew nourished.
A general view as work progresses. The biscuit tin serves both as a building aid and to keep the crew nourished.

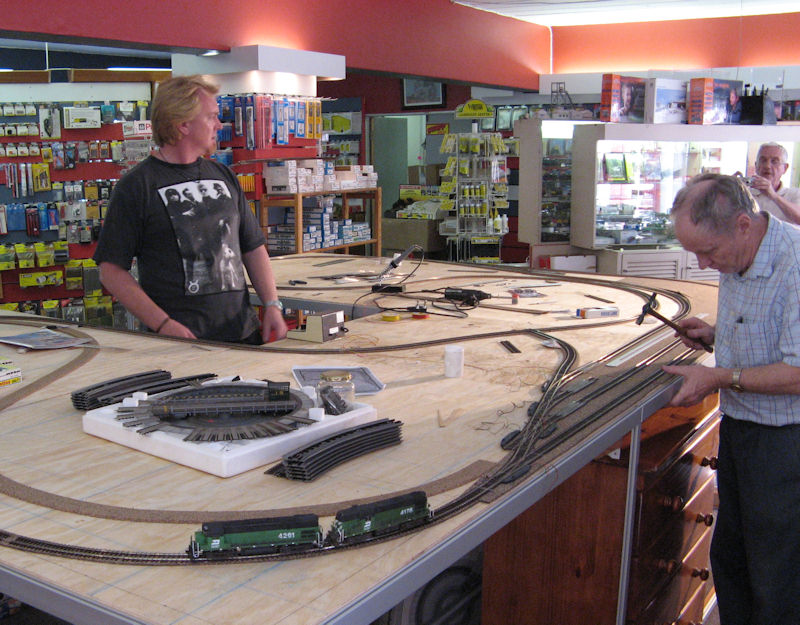

Progress continues.
Progress continues.
