Superheater elements

Post by John Ashworth »

Holes were found in two of the superheater elements on 2650
Attachments

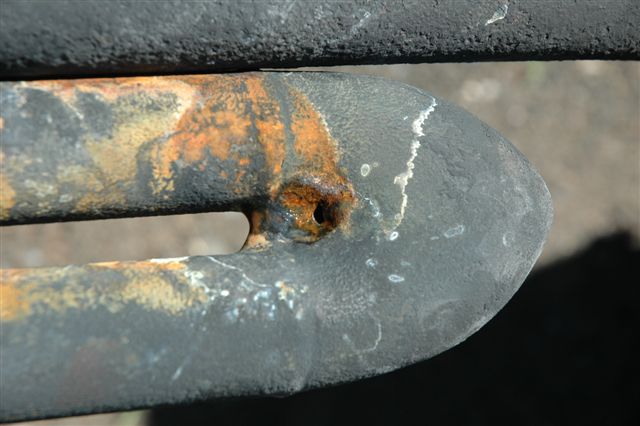

One of the holes discovered on the element bend, removed from 19D 2650. There were in fact two holes in this particular element.<br /><br />Photo by Nathan Berelowitz Nov 8th 2007
One of the holes discovered on the element bend, removed from 19D 2650. There were in fact two holes in this particular element.

Photo by Nathan Berelowitz Nov 8th 2007
nov11fotrcullinantrain 005.jpg (51.94 KiB) Viewed 1045 times

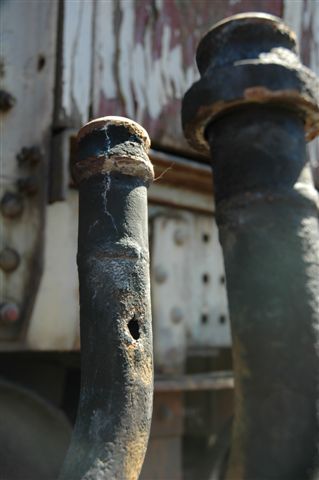

The large hole near the top end of an element removed from 19D 2650. A<br />second hole was discovered at the return bend. <br /><br />Photo by Nathan Berelowitz 8th Nov 2007
The large hole near the top end of an element removed from 19D 2650. A
second hole was discovered at the return bend.

Photo by Nathan Berelowitz 8th Nov 2007
nov11fotrcullinantrain 002.jpg (30.45 KiB) Viewed 1045 times
