Underneath 3020

Post by John Ashworth »

Going underneath an oil-fired loco seems to be a messier experience than a coal-fired one!

Photos by John Ashworth, Nairobi 17 April 2010
Attachments

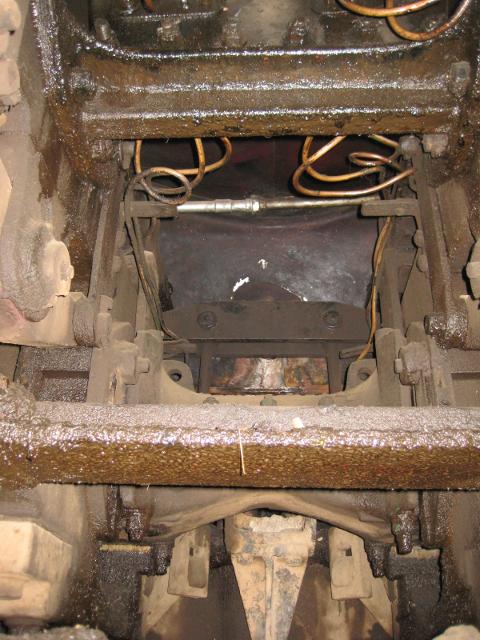

It's quite difficult to orientate myself, even just a couple of hours after taking this picture, but I think it is looking upwards and backwards at the front of the firebox
It's quite difficult to orientate myself, even just a couple of hours after taking this picture, but I think it is looking upwards and backwards at the front of the firebox

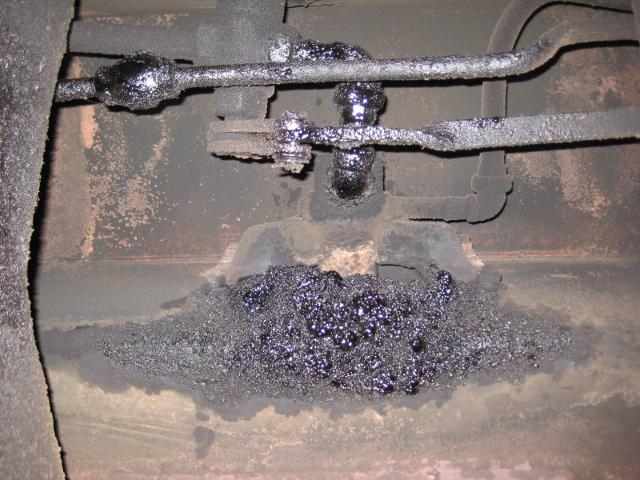

This is where the oil is fed in, at the front of the firebox
This is where the oil is fed in, at the front of the firebox

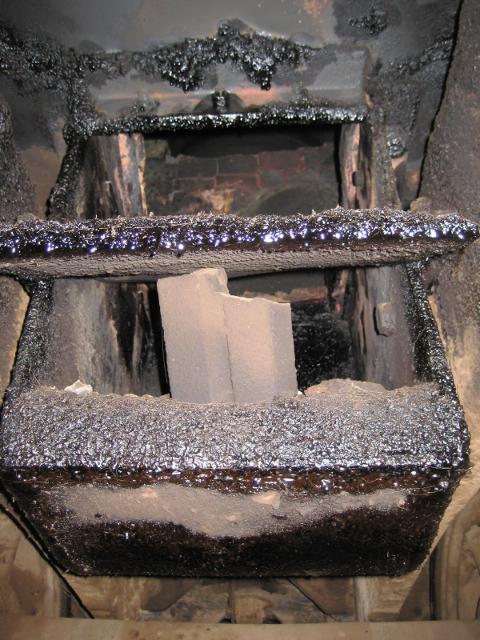

This is the botton of the firebox, where an ashpan hopper would be on a coal-fired loco. The horizontal flap in the middle appears to be a damper that can be opened and closed
This is the botton of the firebox, where an ashpan hopper would be on a coal-fired loco. The horizontal flap in the middle appears to be a damper that can be opened and closed

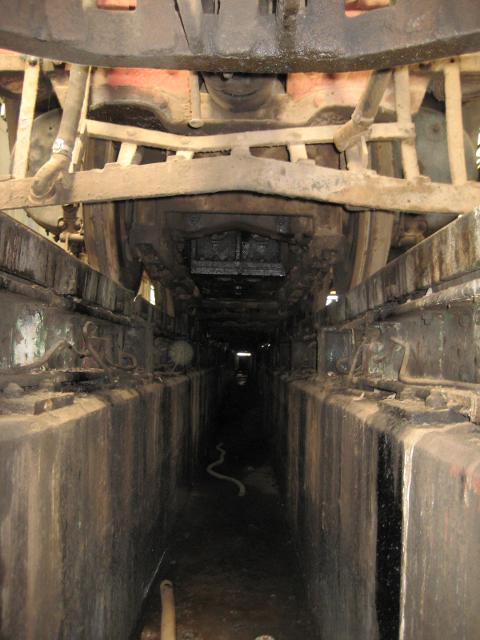

This shot is taken from under the cow-catcher of 3020 looking forwards under Garratt 5918
This shot is taken from under the cow-catcher of 3020 looking forwards under Garratt 5918
