2409: footplate fittings
-
John Ashworth
- Site Admin
- Posts: 23606
- Joined: 24 Jan 2007, 14:38
- Location: Nairobi, Kenya
- Contact:
2409: footplate fittings
Photos by John Ashworth 31/10/09
- Attachments
-
- Boiler plate - built 1928
- 2409_IMG_2311.JPG (74.71 KiB) Viewed 867 times
-

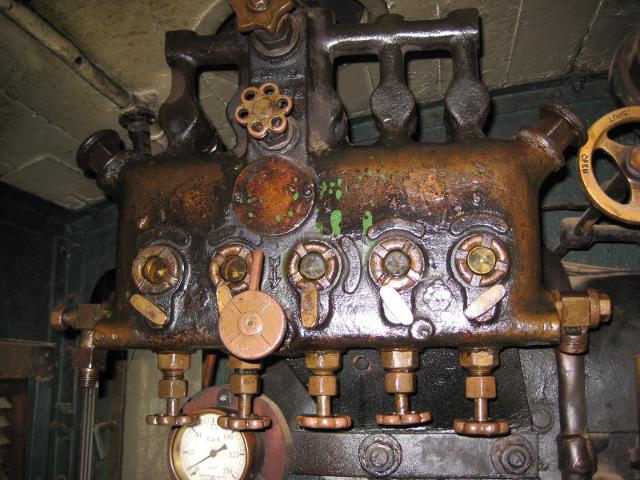

- This lubricator appears to have two filler caps and two drains.
- 2409_IMG_2310.JPG (72.33 KiB) Viewed 867 times
-
- Gauge glass protector
- 2409_IMG_2312.JPG (59.17 KiB) Viewed 866 times
-
- A window?
- 2409_IMG_2317.JPG (28.5 KiB) Viewed 867 times
-
- Not perfect, still a bit streaky, and it wouldn't satisfy some of the sterner old Spoornet Section Managers (Leon, where are you?!), but at least the fireman can now see through the window.
- 2409_IMG_2318.JPG (21.76 KiB) Viewed 867 times
-
- The brake pressure gauge looks a bit more modern than most of the other footplate fittings.
- 2409_IMG_2322.JPG (40.32 KiB) Viewed 867 times
-

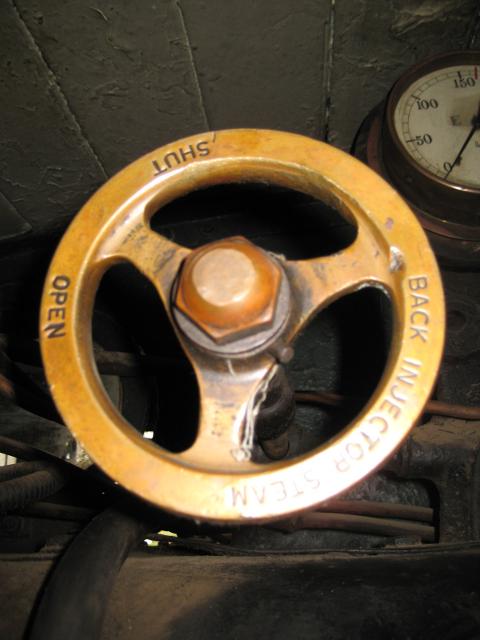

- Fireman's side injector steam valve. The steam pressure gauge can just be seen at the top of this photo, mounted where neither driver nor fireman can see it easily.
- 2409_IMG_2323.JPG (46.3 KiB) Viewed 866 times
-

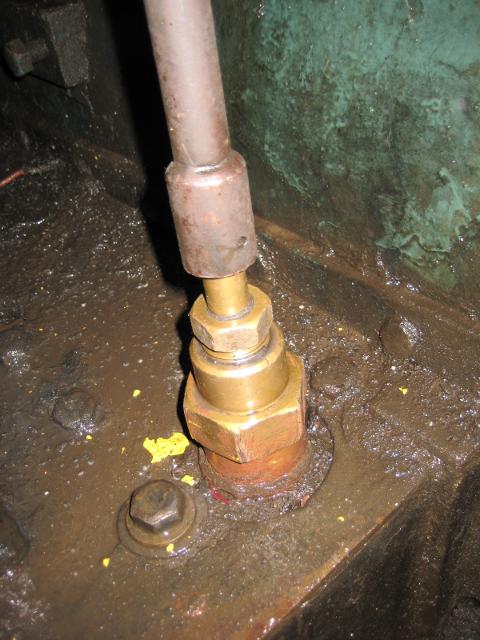

- Much of the brass has either been replaced or painted over, but once you start cleaning you find odd bits. This is the driver's side injector water cock.
- 2409_IMG_2324.JPG (61.61 KiB) Viewed 867 times
